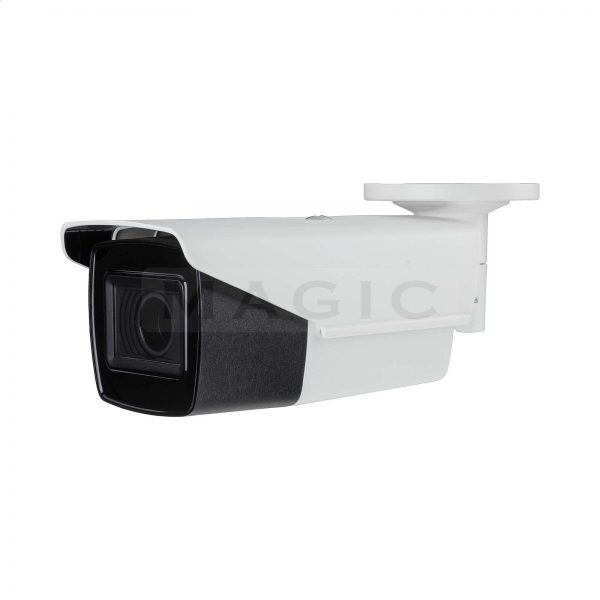

5 MP Outdoor Bullet Camera provides high definition analog output. TurboHD means that the analog signal can be sent over existing coaxial cable, eliminating the need to run new cables for high definition video.
EXIR 2.0 is proprietary IR extended range technology, which has a range of 130 feet (40 meters).
The 2.7 mm to 13.5 mm motorized vari-focal lens is optimized for viewing angles that fit any situation. DWDR (Digital Wide Dynamic Range) ensures that ideal images are captured regardless of the lighting conditions.
FEATURES
- 8.29 MP High Performance CMOS
- Auto Focus
- 3840 × 2160 Resolution
- 2.7 ~ 13.5 mm Motorized Vari-focal Lens
- EXIR 2.0, Smart IR, up to 260ft (80m) IR distance
- OSD menu, DNR
- 4 in 1 video output (switchable TVI / AHD / CVI / CVBS)
- IP67
- Up The Coax (UTC)
SPECIFICATIONS
| Camera | |
|---|---|
| Image Sensor | 8.29 MegaPixel Progressive Scan CMOS |
| Frame Rate | TVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps CVI: 8MP@12.5fps, 8MP@15fps AHD: 8M@12.5fps, 8M@15fps CVBS: 960H P/N |
| Signal System | PAL/NTSC |
| Resolution | 3840 (H) × 2160 (V) |
| Min. Illumination | Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Speed | PAL: 1/12.5s to 1/50,000s NTSC: 1/15s to 1/50,000s |
| Lens | 2.7 ~ 13.5 mm motorized vari-focal lens |
| Horizontal Field of View | 108.1° to 45.6° |
| Lens Mount | Φ 14 |
| Day/Night | IR cut filter |
| Angle Adjustment | Pan: 0 to 360°, Tilt: 0 to 90°, Rotation: 0 to 360° |
| Synchronization | Internal synchronization |
| DWDR (Digital Wide Dynamic Range) | 105 dB |
| Menu | |
| AGC | Yes |
| Day / Night Mode | Auto / Color / BW (black and white) |
| White Balance | Auto / Manual |
| BLC | Yes |
| DWDR | Yes |
| Functions | Brightness, Sharpness, DNR, Mirror, Smart IR, HLC |
| Interface | |
| TVI Video Output | 1 HD analog output |
| Switch Button | TVI / AHD / CVI / CVBS |
| General | |
| Operating Conditions | -40° F to 140° F (-40° C to 60° C), humidity: 90% or less (non-condensation) |
| Power Supply | 9 VDC to 15 VDC *You are recommended to use one power adapter to supply the power for one camera. |
| Power Consumption | Max. 8.6 W |
| Protection Level | IP67 |
| Material | Front cover: Metal Main body: Plastic Bracket: Metal |
| IR Range | Up to 260 ft (80 m) |
| Communication | Up-the-Coax |
| Dimensions | 84.5 mm × 92 mm × 255.1 mm (3.33″ × 3.62″ × 10″) |
| Weight | Approx. 695 g (1.53 lb.) |
