What is Magic Technology?
Magic Technology is designed to adopt various video signal types in a single Digital Video Recorder. In other words, any past generation analog CCTV cameras you own, as well as HD-SDI digital CCTV-cameras will work seamlessly with the Magic DVR. Magic technology bridges the gap between analog security and the next generation high definition digital security.

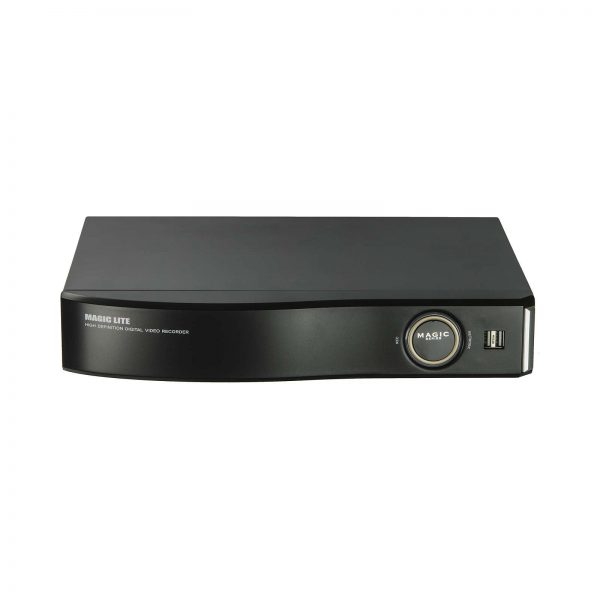

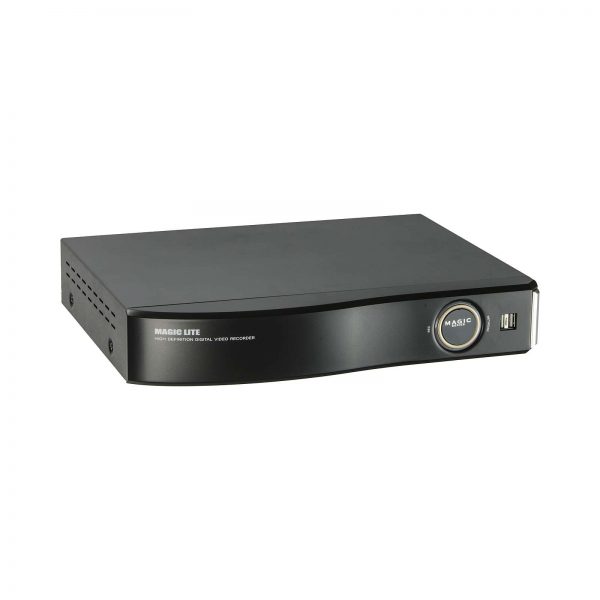

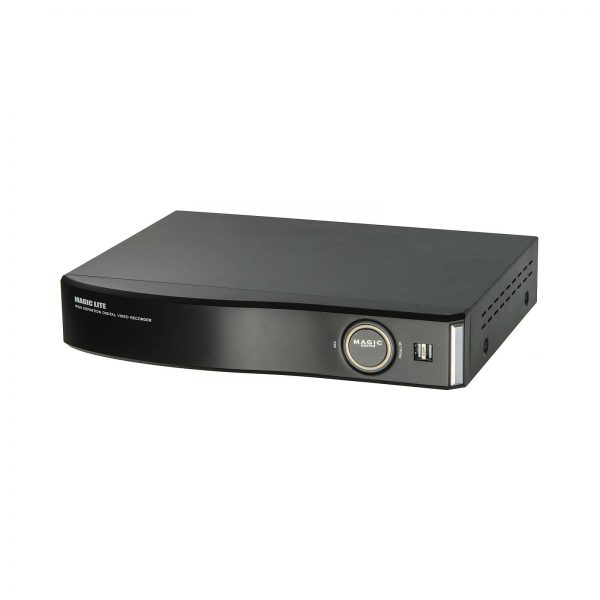

How Magic Lite DVR Works
Upgrade just can’t get any easier than this, just unplug all cameras from the old DVR and plug them back into the new Magic DVR, it will just work. Absolutely no training or knowledge is necessary.
The best feature about the DVR is that both analog and HD-SDI cameras work in a single DVR.
FULL HD security is not a luxury option any more, it is a must for today’s security.
FEATURES
- Full GUI with alpha blending
- Individual setting of resolution, frame rates and picture quality
- Instant Replay
- Digital Zoom (Live & Playback)
- Mouse Control
- Weekly scheduler with holiday by 10 minutes setting
- Covert, Disable and Private function of cameras
- Motion Detection with 352 area settings
- Relay alarm output
- PTZ control by RS-485
- Daylight Saving Time and Network Time Setting
- Multi User Authority up to 8 Users
- De-interlace upon live and playback
- 22 languages with full graphic
- Individual Network port setting
- Auto Deletion
- Import and Export the configuration
- Mirroring
- POS Interface
- Dual CODEC engine for independent video transmission
- Interactive setup via network
SPECIFICATIONS

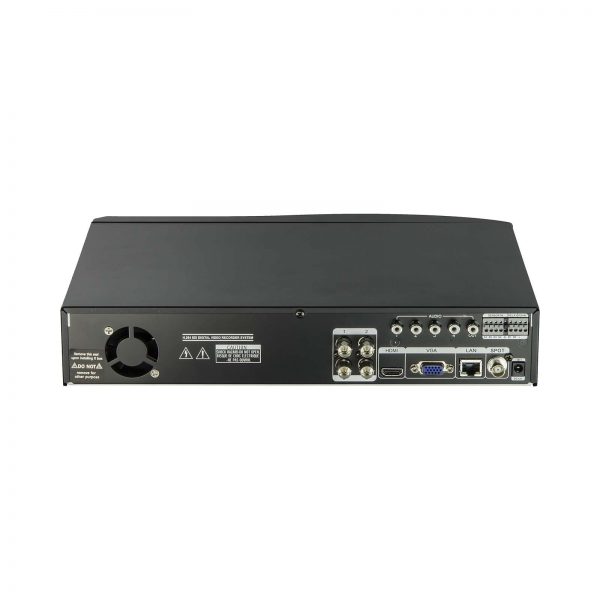

| Video | Camera input | 4 BNC |
| Individual HD/Analog selectable | 720p real time / 1080p non real time Hybrid | |
| Available source | 720p25, 30, 50, 60 / 1080p25, 30 / 1080i50, 60 / Composite / 960H/Mixed | |
| Output | 1 HDMI (Main Display) 1 VGA (Main Display) 1 Composite (Programmable SPOT) |
|
| Audio | Audio input | 4 RCA |
| Output | 1 RCA | |
| Sensor In | 4 (NC, NO selectable) | |
| Alarm out | 1 relay | |
| Operating System | Embedded Linux OS | |
| Display | Speed | Real Time |
| Resolution (Pixel) | 1280×1024, 1280×720, 1920×1080 | |
| Screen Split | 1 / 4 | |
| Recording | CODEC | H.264 / JPEG for 3G, Dual CODEC |
| Resolution (Pixel) | 1080P (1080p25,30/1080i50,60) 720P (720p25,30,50,60) WD1, D1 (Composite, 960H) |
|
| Picture quality | 4 steps (Super, High, Medium, Low) | |
| Speed | NTSC : 120fps@720p / 50fps@1080p | |
| Playback | Display | 1 / 4 |
| Search mode | Calendar, Event ,POS , Panorama, Thumbnail | |
| Speed | NTSC : 60fps@720p / 30fps@1080p | |
| Fast/Slow speed | Normal, REW & FF [recorded speed ×2, ×4, ×8,×16,×32,×64,×1/2,×1/4], Frame to frame, Pause | |
| Network | Network Interface | Gigabit Ethernet |
| Speed | 20fps@720p | |
| Protocol | TCP/IP, HTTP, DHCP | |
| Application | Windows XP / 7 / 8 (PC Client system& IE) / MAC | |
| Web Browser | Internet Explorer, Safari, FireFox, Chrome | |
| Smart phone App | MR. Patrol : Android, iPhone for live and search | |
| Backup | Interface | USB 2.0 × 2 |
| Backup device | External HDD, CD&DVD-RW, Network, Thumb Drive | |
| Max. # of HDD can be installed | 2 SATA | |
| Others | Power Consumption | 60W |
| Operating Temperature | 5 ~40°C(41~104°F) | |
| Relative Humidity | Maximum 80% non-condensing | |
| Dimension | 13.39(W)×9.84(D)×2.36(H)inches / 340(W)×250(D)×60(H)mm | |
