SPECIFICATIONS

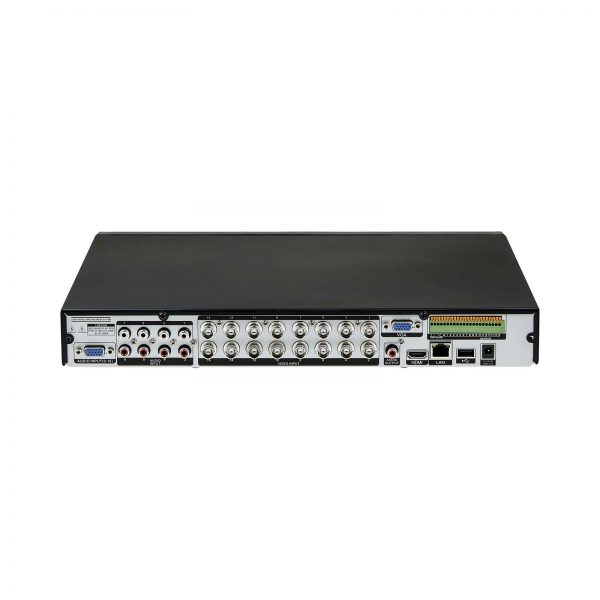

| Video | Camera input | 16 BNC | |
| Individual HD/Analog selectable | Analog, AHD, TVI, CVI | ||
| Available source | TVI 720p25,30/1080p25,30/3MP@18 ~ 30/4MP@12 ~ 30 AHD 720p25,30/1080p25,30/3MP@18 ~ 30/4MP@12 ~ 30 Composite/960H/Mixed |
||
| IP Camera | Spec | ONVIF 2.3, RTSP, H.264, dual stream use gigabit ethnet hub |
|
| Num | 8 | ||
| Restriction | Cannot setup Private ZONE Cannot support Timestamp |
||
| Output | 1 HDMI (Main Display, ~UHD@30) 1 VGA (Main Display, ~1080p60) 1 Composite (Programmable SPOT) |
||
| Audio | Audio input | 16 ( 8 RCA + 8 DB15) | |
| Output | 1 RCA | ||
| Sensor In | 16 (NC, NO selectable) | ||
| Alarm out | 1 relay | ||
| Operating System | Embedded Linux OS | ||
| Display | Speed | Real Time | |
| Resolution (Pixel) | 1280 × 1024, 1280 × 720, 1920 × 1080 | ||
| Split screen | 1,4,6,8,9,13,16 | ||
| Main Recording | CODEC | H.264 | |
| Resolution (Pixel) | 4MP, 720p (4MP@12 ~ 30) 3MP, 720p (3MP@18 ~ 30) 1080p, 720p (1080p@25,30) 720p, 960 × 540 (720p#25,30) 960H, D1(Composite, 960H) |
||
| Picture quality | 4 steps (Super, High, Medium, Low) | ||
| Speed | 240fps @ 4MP | ||
| Dual Recording |
CODEC | H.264 | |
| Resolution (Pixel) | 640 × 360 | ||
| Playback | Display | 1,4,6,8,9,13,16 | |
| Search mode | Calendar, Event ,POS , Panorama, Thumbnail | ||
| Speed | 240fps | ||
| Fast/Slow speed | Normal, REW & FF [recorded speed × 2, × 4, × 8, × 16,x32,x64,x1/2,x1/4], Frame to frame, Pause | ||
| Network (Individual setting of resolution, frame rates and picture quality) |
Network Interface | Gigabit Ethernet | |
| High Resolution (Pixel) | 1080p, 720p(4MP@12 ~ 30) 1080p, 720p(4MP@12 ~ 30) 1080p, 720p(1080p25,30) 720p, 960 × 540 (720p25,30) 960H, D1 (Composite, 960H) |
||
| Low Resolution (Pixel) | 480 × 256 (4MP, 3MP, 1080p, 720p) CIF (Composite, 960H) |
||
| Speed | 140fps @ 1080p | ||
| Protocol | TCP/IP, HTTP, DHCP | ||
| Application | Windows 7 / 8 / 10 (PC Client system& IE)/MAC | ||
| Web Browser | Internet Explorer, Safari, Chrome, Firefox | ||
| Smart phone App | Android, iPhone for live and search | ||
| Backup | Interface | USB 2.0 × 2 | |
| Backup device | External HDD, CD&DVD-RW, Network, Thumb Drive | ||
| The number of HDD | 2 SATA(No capacity limit ; 6TB or more) | ||
| Function | Full GUI with alpha blending | ||
| Individual setting of resolution, frame rates and picture quality | |||
| Instant Replay | |||
| Digital Zoom | |||
| Mouse Control | |||
| Weekly scheduler with holiday by 10 minutes setting | |||
| Covert, Disable and Private function of cameras | |||
| Motion Detection with 576 area setting | |||
| Relay alarm output | |||
| PTZ control by RS-485 | |||
| Daylight Saving Time and Network Time Setting | |||
| Multi User Authority up to 8 Users | |||
| Deinterlacer upon live and playback | |||
| 22 languages with full graphic | |||
| Individual Network port setting | |||
| Auto Deletion | |||
| Import and Export the configuration | |||
| Interactive setup via network | |||
| POS Interface | |||
| Mirroring | |||
| Dual CODEC engine for independent video transmission | |||
| Others | Power Consumption | 60W | |
| Operating Temperature | 5 ~ 40°C(41 ~ 104F) | ||
| Relative Humidity | Maximum 80% non-condensing | ||
| Dimension | 380(W) × 340(D) × 50(H) mm | ||
