FEATURES
- Full GUI with alpha blending Individual setting of resolution, frame rates and picture quality
- Instant Replay
- Digital Zoom
- Mouse Control
- Weekly scheduler with holiday by 10 minutes setting
- Covert, Disable and Private function of cameras
- Motion Detection with 576 area setting
- Relay alarm output
- PTZ control by RS-485
- Daylight Saving Time and Network Time Setting
- Multi User Authority
- Deinterlacer upon live and playback
- Multi languages with full graphic
- Individual Network port setting
- Auto Deletion
- Import and Export the configuration
- Interactive setup via network
- POS Interface
- Mirroring
SPECIFICATIONS
| Video | |

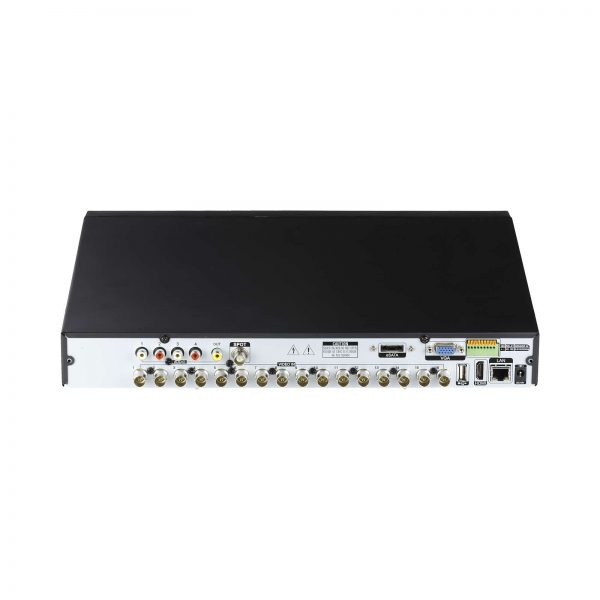

| Camera input | 16 BNC |
| Individual HD/Analog selectable | All Hybrid |
| Available source | HD-SDI 720p25,30/1080p25,30 EX-SDI 720p25,30/1080p25,30 /Composite/960H/Mixed |
| IP Camera Spec | ONVIF 2.3, RTSP, H.264, dual stream use gigabit ethnet hub |
| Num of IP Camera Suuport | 4 |
| IP Camera Restrictions | Cannot display SPOT Cannot setup Private ZONE Cannot attach email image Cannot snapshot live image Cannot support Timestamp |
| Output | 1 HDMI (Main Display or Programmable HD Spot) 1 VGA (Main Display or Programmable HD Spot) 1 Composite (Programmable SPOT) |
| Audio & I/O | |
| Audio input | 4 RCA |
| Output | 1 RCA |
| Sensor In | 4 (NC, NO selectable) |
| Alarm out | 1 relay |
| Operating System | Embedded Linux OS |
| Display | |
| Speed | Real Time |
| Resolution (Pixel) | 1280 × 1024, 1280 × 720, 1920 × 1080 |
| Split screen | 1,4,6,8,9,13,16 |
| Main Recording | |
| Resolution (Pixel) | 1080p, 720p (1080p25,30) 720p, 960 × 540 (720p25,30) 960H, D1(Composite, 960H) |
| Picture quality | 4 steps (Super, High, Medium, Low) |
| Speed | 240fps @ 1080p |
| Dual Recording | |
| Resolution (Pixel) | 480 × 256 |
| Playback | |
| Display | 1,4,6,8,9,13,16 |
| Search mode | Calendar, Event ,POS , Panorama, Thumbnail |
| Speed | 120fps @ 1080p |
| Fast/Slow speed | Normal, REW & FF [recorded speed × 2, × 4, × 8, × 16, × 32, × 64, × 1/2, × 1/4], Frame to frame, Pause |
| Network (Individual setting of resolution, frame rates and picture quality) | |
| Network Interface | Gigabit Ethernet |
| High Resolution (Pixel) | 1080p, 720p(1080p25,30) 720p, 960 × 540 (720p25,30) 960H, D1 (Composite, 960H) |
| Low Resolution (Pixel) | 480 × 256 (1080p25,30) 480 × 256 (720p25,30) CIF (Composite, 960H) |
| Speed | 100fps @ 1080p |
| Protocol | TCP/IP, HTTP, DHCP |
| Application | Windows 7 / 8 (PC Client system& IE)/MAC |
| Web Browser | Internet Explorer, Safari, Chrome, Firefox |
| Smart phone App | Android, iPhone for live and search |
| Backup | |
| Interface | USB 2.0 × 2 |
| Backup device | External HDD, CD&DVD-RW, Network, Thumb Drive |
| The number of HDD | 2 SATA(No capacity limit ; 6TB of more) |
| Others | |
| Power Consumption | 60W |
| Operating Temperature | 5 ~ 40°C(41 ~ 104°F) |
| Relative Humidity | Maximum 80% non-condensing |
| Dimension | 380(W) × 340(D) × 50(H) mm |
